【本優健康裝備】——滾筒式除雜機(ZXJ drum type impurity remover machine)2021-01-15

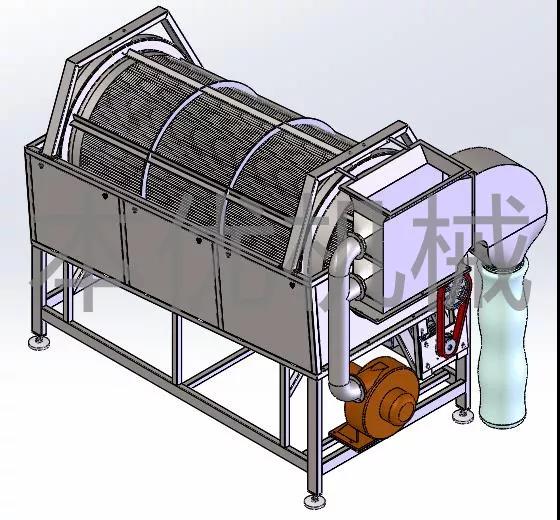

ZXJ型滾筒式除雜機

ZXJ drum type impurity remover machine

 筒式除雜機

主要用途:Main application

滾筒式除雜機主要用于物料與部分固體顆粒狀雜物的分離,如:果類花蒂,干果,碎枝等雜物。同樣適用于刺梨、鮮橙、芒果、蘋果等果蔬。

Main applications: The drum-type impurity cleaner is mainly used for separating the product materials and some solid granular debris, such as fruit flower stalks, dried fruits, broken branches and other debris. Applied ranges,Prickly pear, fresh orange, mango, apple and other fruits and vegetables.



設備各組成部分:Components of the equipment

筒式除雜機

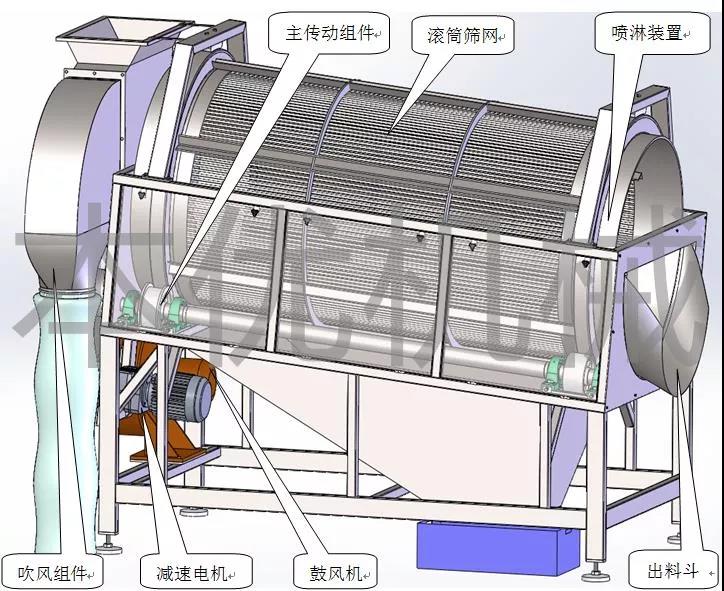

  如上圖所示,該設備主要由主動傳動組件、滾筒篩網、噴淋裝置、吹風組件、減速電機、鼓風機、出料斗等部件組成。

  The equipment is mainly composed of Main Active transmission components,Drum mesh,spraying devices,Blower components,Reducer motor,Blower,discharge hopperand other components (see attached picture).



主要特點:Main features

1、設備整體重量輕靈巧妙,方便拆卸。

The overall weight of the equipment is small and smart, and it is easy to disassemble.

2、整機結構緊湊,運行可靠;各部件優化設計,清洗、更換更為方便。

The whole machine is compact in structure and reliable in operation; the components are optimized in design, making it easier to clean and replace.

3、可安裝于流水線上,自動化生產,人工勞動強度低。

It can be installed on the assembly line, automatic production, lower manual labor intensity.

4、配置吹風機組,多道工序除去物料中混入的翼狀輕型雜物。

Equipped with a blower, multiple processes to remove slight wing-shaped debris mixed in the material.

5、整機除進、排料外,為全封閉結構,安全防護性能好。

Except for feeding and discharging, the whole machine is a fully enclosed structure with good safety protection performance.

6、滾筒篩網大小及間距可依據物料大小定制。

The size and spacing of the drum screen can be customized according to the sizes of the product materials.

 筒式除雜機

使用環境:Operating environment

滾筒式除雜機主要用于物料與部分固體顆粒狀雜物的分離,如:果類花蒂,干果,碎枝等雜物。同樣適用于刺梨、鮮橙、芒果、蘋果等果蔬。

Main applications: The drum-type impurity cleaner is mainly used for separating the product materials and some solid granular debris, such as fruit flower stalks, dried fruits, broken branches and other debris. Applied ranges,Prickly pear, fresh orange, mango, apple and other fruits and vegetables



工作原理:Working principles

工作時,在電動機的帶動下,主傳動組件開始運轉,通過摩擦力帶動滾筒篩網運轉。物料從進料口進入吹風組件,物料與雜物徹底分開,不粘連,部分翼狀輕型雜物由出風口排出,剩下的物料與雜物進入滾筒篩網進一步分離,雜物由排渣口排出,物料由出料口送出進入下一道工序。

When working, driven by the motor, the main drive assembly starts to run, and the drum screen is driven to run through friction. The material enters the blowing assembly from the feed port, the material is completely separated from the sundries, without adhesion, part of the wing-shaped light sundries are discharged from the air outlet, the remaining material and sundries enter the drum screen for further separation, and the sundries are discharged from the slag discharge port , The material is sent out from the discharge port to the next process.


物料與雜物的分離主要是由回轉運行的滾筒篩網來控制的,分離的程度主要是由篩網間距來決定的。

The separation of materials and debris is mainly controlled by the rotating drum screen, and the degree of separation is mainly determined by the spacing of the screens.



機架主要給整個機器提供承受力量的支架。

The frame mainly provides a support for the entire machine to withstand strength.



篩體由傳動組件組成,它主要是由傳動軸與帶立式座軸承組成,主要承載篩網運轉。

The screen body is composed of transmission components. It is mainly composed of a transmission shaft and a bearing with a vertical seat. It mainly carries the screen mesh for operation.



電機主要給整個機器提供動力,通過鏈輪和鏈條傳遞至傳動組件。

The motor mainly provides power to the entire machine, which is transmitted to the transmission assembly through the sprocket and chain.

左右活動門可根據需要打開,一般用于取出篩網間雜物和定期徹底清洗殼體內部。

The left and right movable doors can be opened as needed, and are generally used to take out the sundries between the screens and clean the inside of the shell regularly and thoroughly.



筒式除雜機


關于滾筒式除雜機今天我們就講到這里,如有疑問歡迎聯系本優機械的服務工程師。

That's all what we had talked today about the drum type impurity remover machine, please contact beyond service engineer if you got any question.
